Customized universal stand-alone public broadcasting system DIY quick finalization table | ||||
Description: 8 basic power modules that must be selected, 6 audio modules that can be selected or not, 1 link expansion module that can be selected or not, 80 functional partition modules that can be selected or not, 6 amplifier plug-in modules that can be selected or not, 2 remote control modules that can be selected or not for remote control partition or remote control paging, a total of 8×64×2×81×7×3=2741952 types of products. Please fill in the numbers in the cells of this added module column according to the check principle, and the stand-alone public broadcasting system product you need can be quickly finalized. The ultimate customized, personalized, differentiated, and flexible products make the products you create by hand perfectly match the needs of the application scenarios, and the installation, debugging and use are extremely simplified, making it a unique and unique existence. | ||||
Check the principle | Optional module name | Module Function Description | Model Description | Adding Modules |

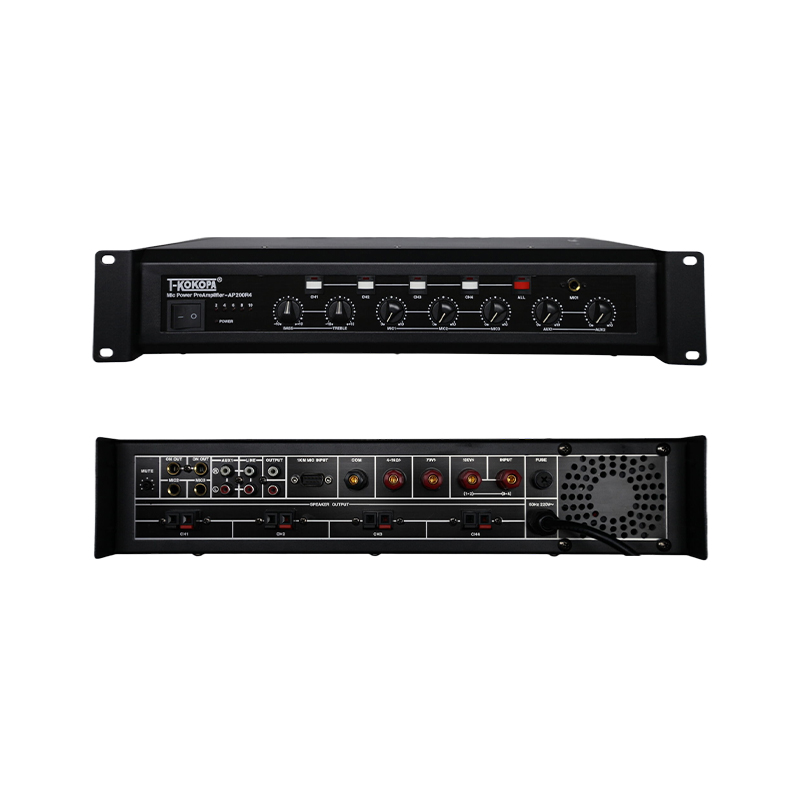

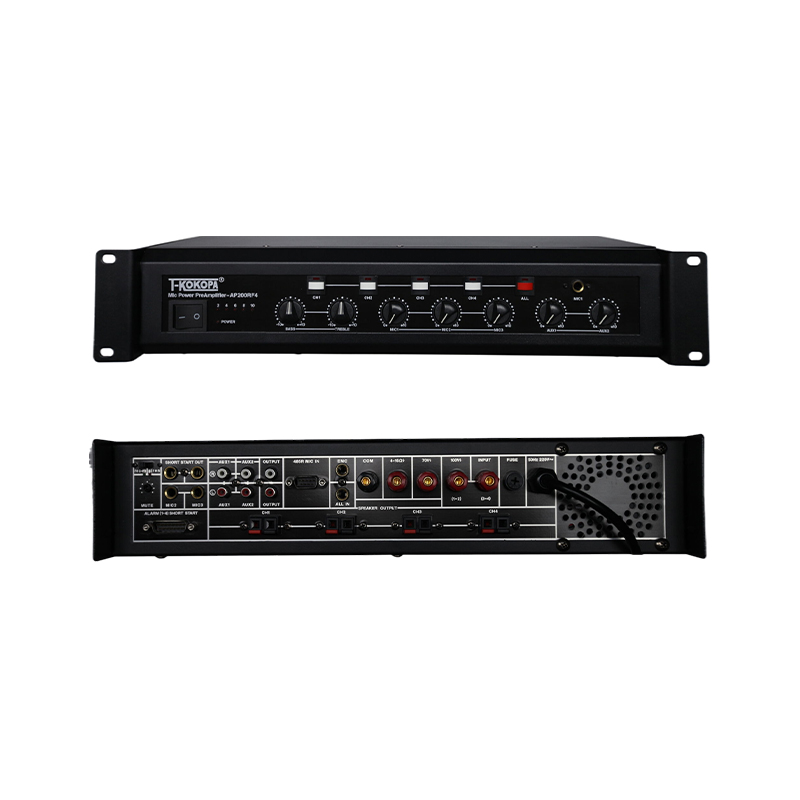

Eight basic power modules that you must choose | 70W Power Module | One MIC1 priority microphone input, 2 ordinary microphone inputs, 2 AUX line inputs, independent volume control, high and low tone adjustment, and 2 total audio link outputs. | AP200 |
|
130W Power Module | AP300 |
| ||
260W Power Module | AP600 |
| ||
360W Power Module | AP1000 |
| ||
70W Power Module | PA8200 |
| ||
130W Power Module | PA8300 |
| ||
260W Power Module | PA8600 |
| ||
360W Power Module | PA9000 |
| ||
6 audio modules can be selected or not | USB-SD-FM-Bluetooth built-in audio source module M | It is a multi-audio integrated module with USB-SD-FM-Bluetooth audio reception. It supports full-function control by keyboard or remote control. The control mainly includes turning on and off the module power, switching the playback mode in a loop, increasing and decreasing the volume, selecting a single song or all songs in a loop, switching tracks up and down, stepping forward and backward, selecting the track number directly, automatically searching for FM radio stations, playing and pausing, one-button mute and restore, EQ balance, etc. It is a perfect replacement for multiple audio source devices. | M |
|
Built-in Chinese and English voice and siren sound dual modules | Built-in recorded standard Chinese-English fire evacuation voice and solidified standard fire siren sound, fast switching of the fluctuation switch, voice can be changed at will, any fire switch quantity can quickly activate the selected alarm sound. Perfect replacement for alarm sound generator. | F |
| |
Analog audio EMC forced cut priority module | RCA line priority interface with nominal EMC, the input audio source of this interface can not only automatically activate the power supply, partition, shield the built-in audio source or AUX audio source, but also activate the external power supply and audio control forced cutting system, perfectly supporting the realization of timed programming or remote automatic forced cutting priority playback, such as completing the programmed timed playback or the external automatic fire alarm sound playback, so as to achieve complete unattended operation. With the programmed audio source, it perfectly replaces the programmed timed power supply and player. | E |
| |
IP network audio forced cut priority input module | RJ45 network port with nominal IP, this interface inputs the controlled system network audio. When the audio arrives, it can automatically activate the power supply, partition, shield the built-in audio source or AUX audio source, and can also activate the external power supply and audio control forced cutting system. Perfect support for timed programming or remote automatic forced cutting priority playback. In conjunction with the main control system and software system, with this unit as the smallest playback unit, it can flexibly complete independent programming timed playback or independent automatic fire alarm, independent network broadcasting. The advantage is that the existing LAN can be used, and the disadvantage is that the new wiring is relatively troublesome, the debugging and installation users must be familiar with network technology, and the cost is high. Perfect replacement for network preamplifier. | I |
| |
Optical fiber audio transmission input forced cut priority module | The LC large square fiber optic interface with the nominal OPTIC can input any analog fiber audio within tens of kilometers of the transmitter module. It is also suitable for connecting the power partition audio to the transmitter after processing, and transmitting it over a long distance. When the audio arrives, it can automatically activate the power supply, partition, shield the built-in sound source or AUX sound source, and can also activate the external power supply and audio control forced cutting system. It is suitable for completing large-scale audio playback systems over long distances. The advantage is that a high proportion of existing fiber optic wiring can be used, but the disadvantage is that the cost is relatively high. | O |
| |
High voltage audio priority input module | The nominal 100V fence terminal can input high-voltage power audio from the on-stage amplifier or partition within several kilometers. When the audio arrives, it can automatically activate the power supply, partition, shield the built-in audio source or AUX audio source, and can also activate the external power supply and audio control forced cutting system, which can perfectly synchronize and share all the audio of the on-stage equipment. It is suitable for completing large-scale audio playback systems over large distances in the most direct and economical way. With the partition amplifier, it is particularly suitable for remote partition paging of the center to multiple sub-controls. | V |
| |
80 functional partition modules, select one or none | 10-key partition module | Only supports manual panel keying of partition selection, one-key all-pass, only used for partition broadcasting of microphones in the machine room and partition playback of background music, single-machine partition quantity 4 to 30 zones, any 20 selections. Can be used with V-port amplifier to complete large-scale paging playback system. Perfect replacement for 1 to 3 partitioners. | S10 |
|
20-key partition module | S20 |
| ||
30-key partition module | S30 |
| ||
10Keyed partition paging partition merge module | The paging module can be used with a paging microphone to activate the power supply of the machine at any distance, shield the AUX sound source of the machine, suspend the key control partition and reselect, and activate the external power supply system or the audio control forced cutting system, so as to perfectly realize the automatic partitioning of the machine to insert the front and back sounds, microphone voices, and any external audio. The number of partitions for a single machine can be 4 to 30, with 20 options for any zone. It perfectly replaces 1 to 3 forced insertion partitioners and 3 pagers. | R10 |
| |
20 keyed partition paging partition merge module | R20 |
| ||
30 keyed partition paging partition merge module | R30 |
| ||
10-key partition fire partition merging module | The fire switch can activate the power supply of the machine in any partition, suspend the key-controlled partition and reactivate it freely, and activate the external alarm sound, external power supply system or sound control forced cutting system in linkage, perfectly realizing the automatic partition insertion of the fire alarm sound of the machine, and the number of partitions of a single machine can be selected from 4 to 30 zones in any 20 ways. It perfectly replaces 1 to 3 forced insertion partitioners. | A10 |
| |
20-key partition fire partition merging module | A20 |
| ||
30-key partition fire partition merging module | A30 |
| ||
10-key paging fire zone merging module | Key-controlled partitions, remote control paging partitions, and fire alarm partitions are combined in an orderly manner. The number of partitions for a single machine ranges from 4 to 30, any 20 types of options. Perfectly replaces 1 to 3 forced partitioners and 3 pagers. | RA10 |
| |
20-key paging fire zone merging module | RA20 |
| ||
30-key paging fire zone merging module | RA30 |
| ||
Select or deselect the paging expansion module | Paging expansion module | When the total paging zones of the system need to exceed 30 zones, fill in 1. One paging zone amplifier can be linked, and a total of 4-10 amplifiers can be linked. | L |
|
Choose one or none of the 6 amplifier plug-in modules | 1-channel external amplifier module | The number of external amplifiers and the corresponding management partitions can be customized arbitrarily. | 1 |
|
2-way external amplifier module | 2 |
| ||
3-way external amplifier module | 3 |
| ||
4-channel external amplifier module | 4 |
| ||
5-way external amplifier module | 5 |
| ||
6-channel external amplifier module | 6 |
| ||
Two remote control modules can be selected, one or the other | Wireless zone remote control module | Wireless remote control of keying partition or paging partition | W |
|
Mobile phone partition remote control module | Remote control of keying partition or paging partition by mobile phone | G | ||
